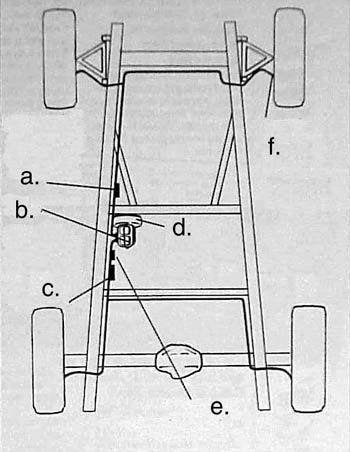

Placement of components

A. With a four wheel disc brake system, a two lb. check valve must be used when the master cylinder is lower than the calipers.

B. Dual chamber master cylinder

C. A 10lb. check valve can be used in the line to rear drum brakes, used with a master cylinder that has no residual (check) pressure valves/

D. Use at least a 7-inch diameter booster or larger with a dual chamber master cylinder.

E. A proportioning valve can be used in the line to the rear to dajust rear brake rate of pressure rise.

F. A 2500-3500lb. street rod can use 11-inch diameter rotors
